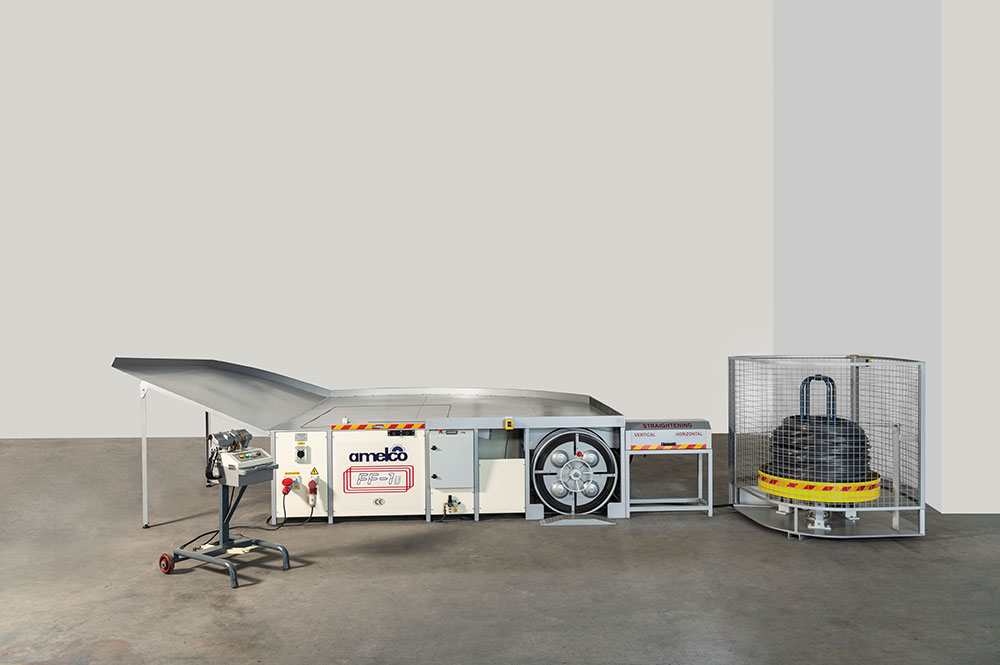

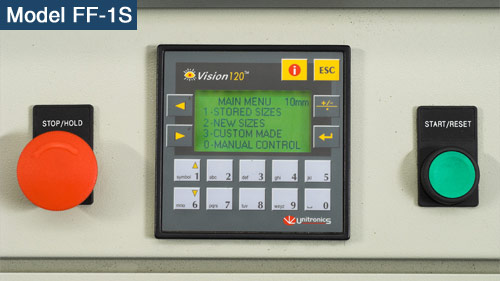

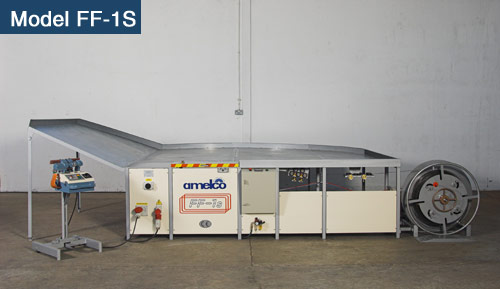

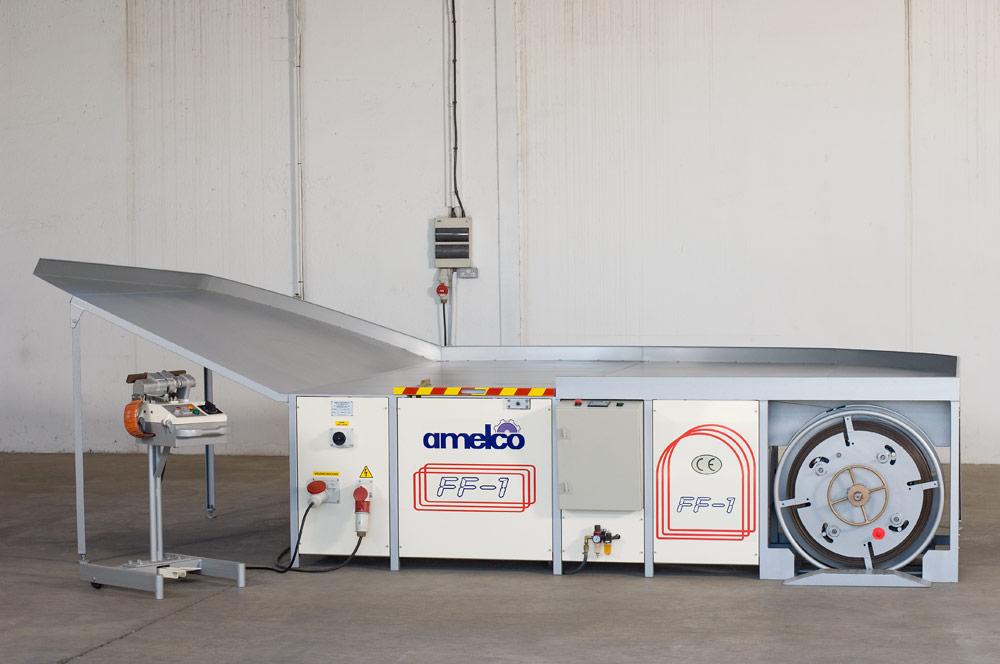

The Frame Machines FF-1 & FF-1S bend and cut border frames for spring units which are ideal for flat steel strip frames, the FF-1R is suitable for round border wire, while the FF-1U can accommodate both types of frames, flat and round. It can be easily programmed for any size and shape of frame. A single operator using the Frame Machine can easily produce, weld, anneal, and stack 1000 frames per 8-hour shift.
Click here to download our Model FF-1 Brochure
Click here to download our Model FF-1R / FF-1U Brochure
Table dimensions to suit the maximum border frame size to be produced. A semi-circle of 2.2m radius table is normally supplied. The size of the
table can be customized according to the customer’s requirements.

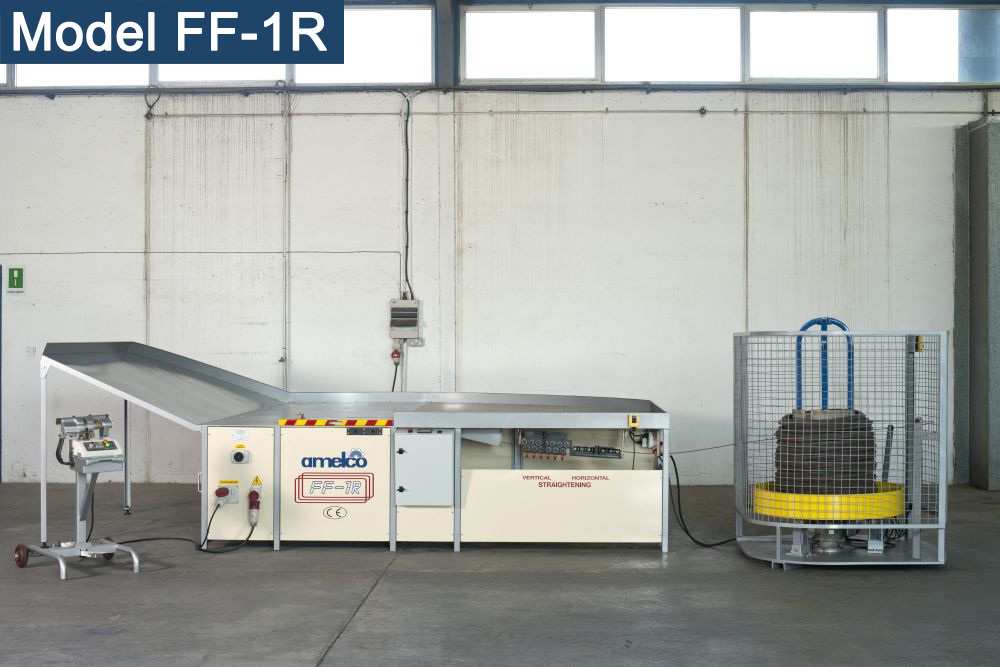

The FF-1R has all the features of the standard FF-1 and FF-1S machines and is suitable for round wire of diameter 3mm - 6mm

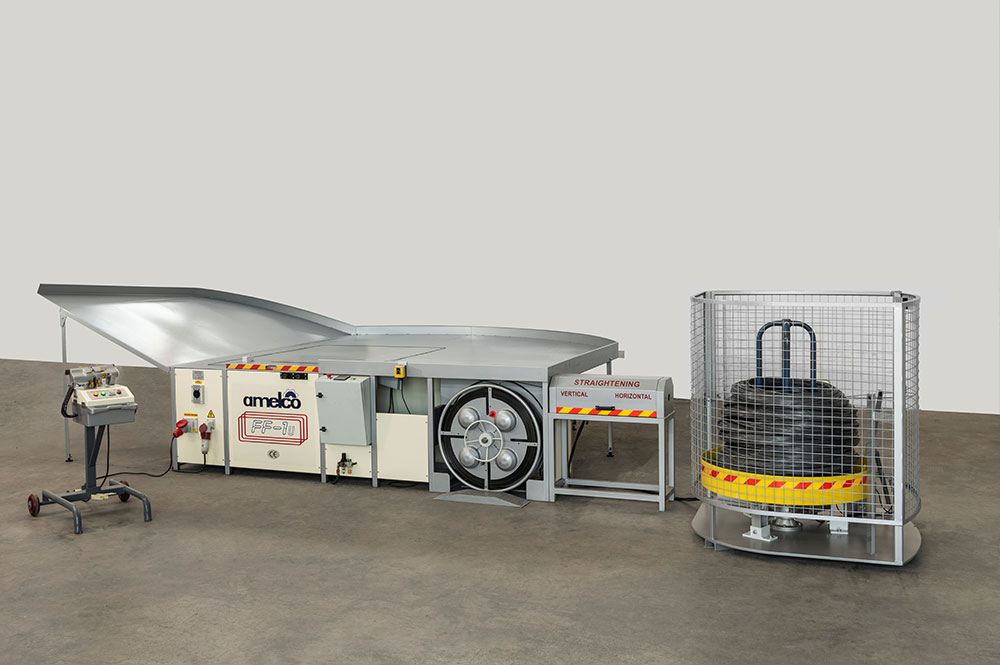

Comes with a motorized 1 tonne wire swift. Maximum wire coil diameter 100cm

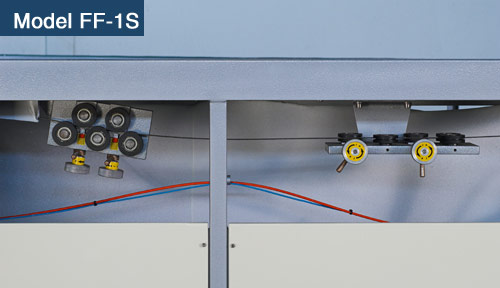

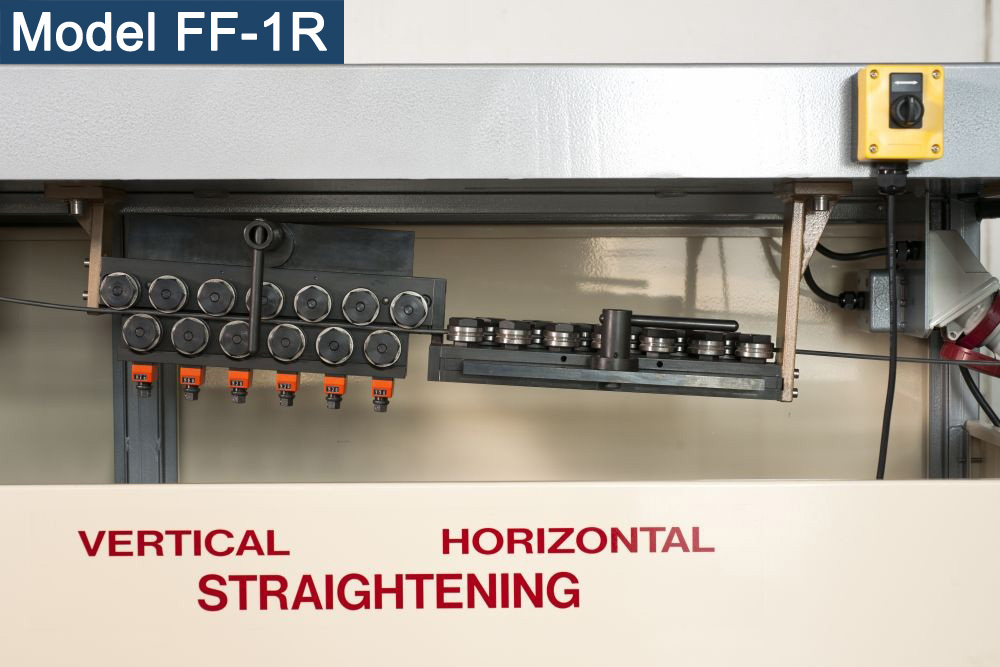

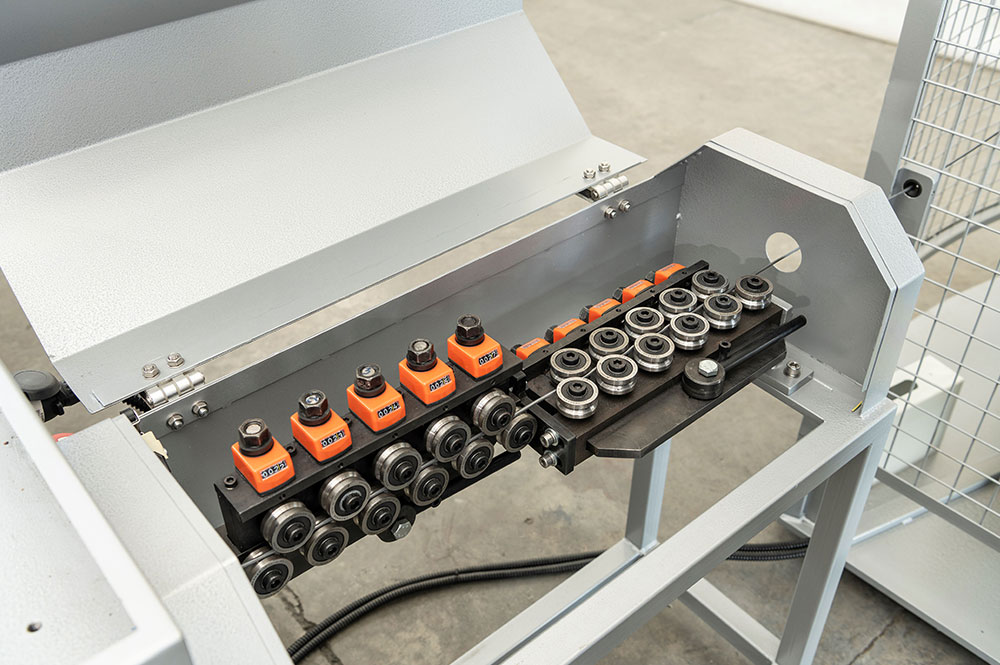

6-stage horizontal and 6-stage vertical digitally controlled straightening devices ensure good results on any wire quality and with easily repeated settings.The machine will measure bend to any specific size and shape and will hydraulically cut the wire.
Twin pair of feeding wheels gives accurate measuring capability and positive drawing of wire without slipping.
Motorised cutter allows border wire of up to 5mm diameter to be used.
No compressed air is required.
Electrical power requirement 4 kW.

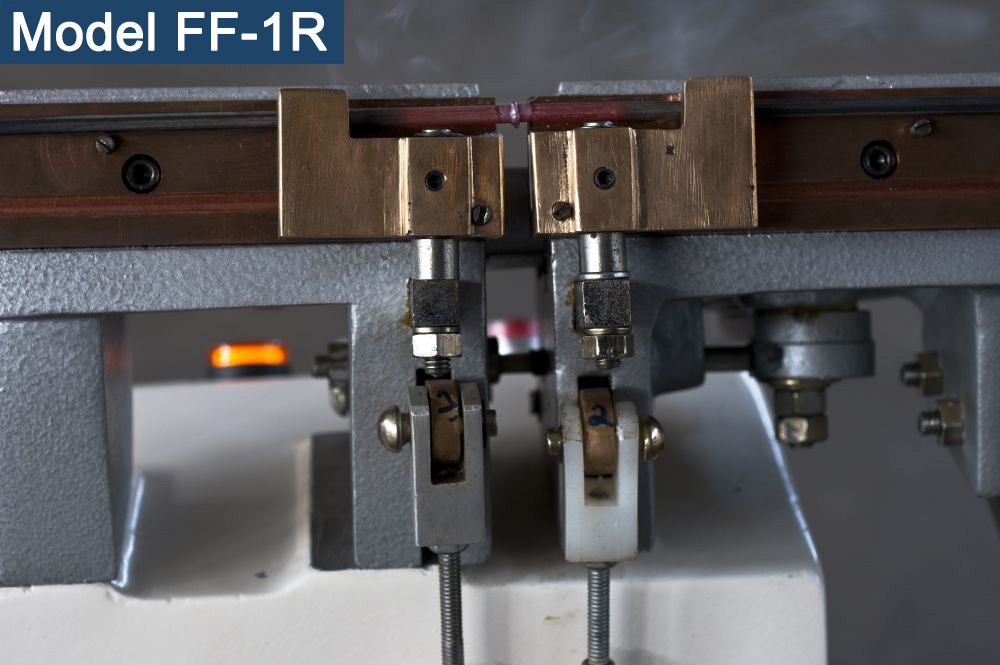

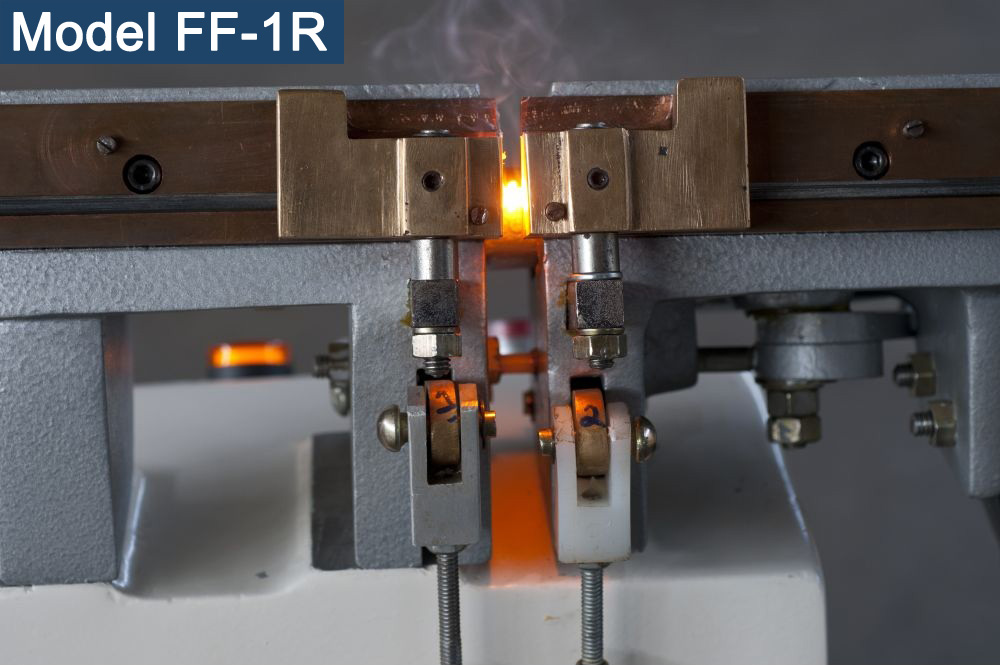

If Butt Welding is used 8 kW instantaneous power is needed.
The FF-1U combines all the frame forming machines FF-1, FF-1S and FF-1R.

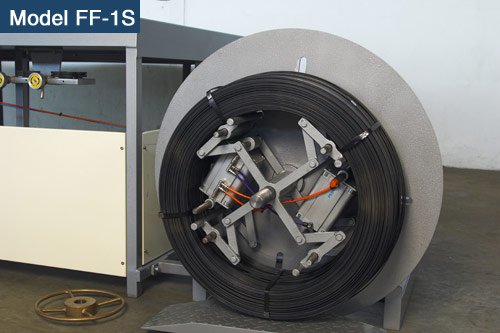

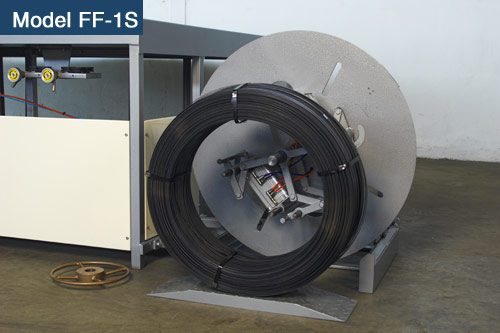

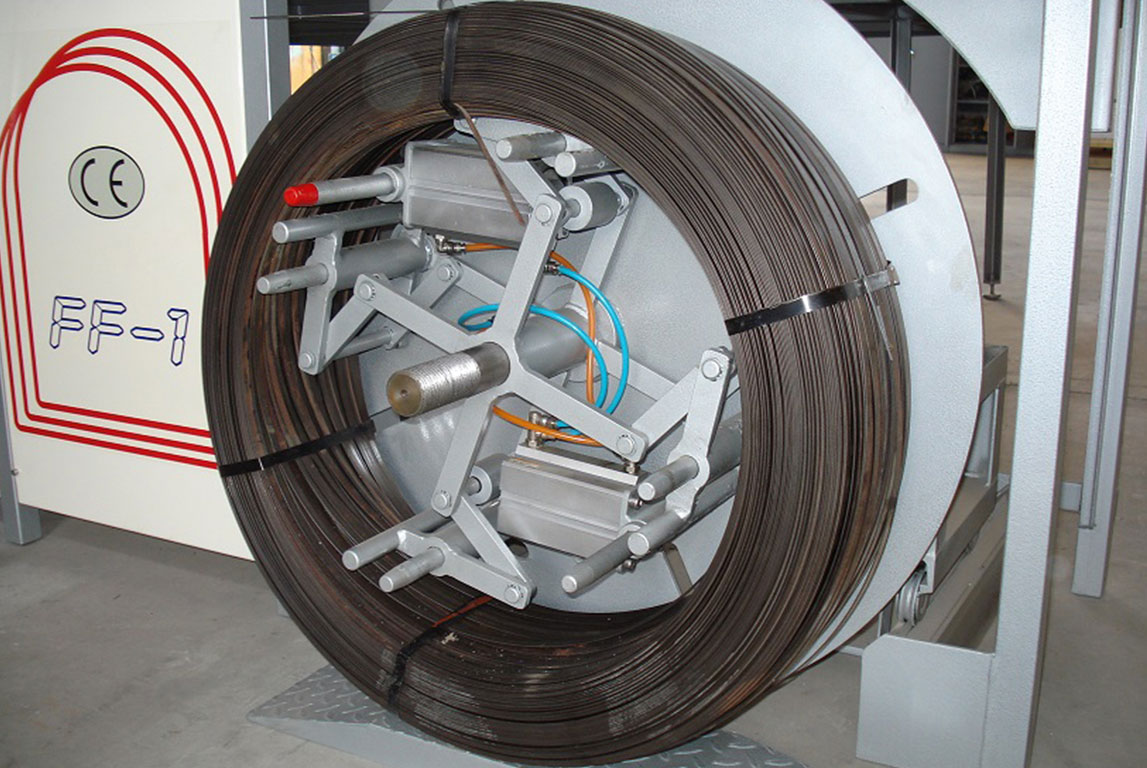

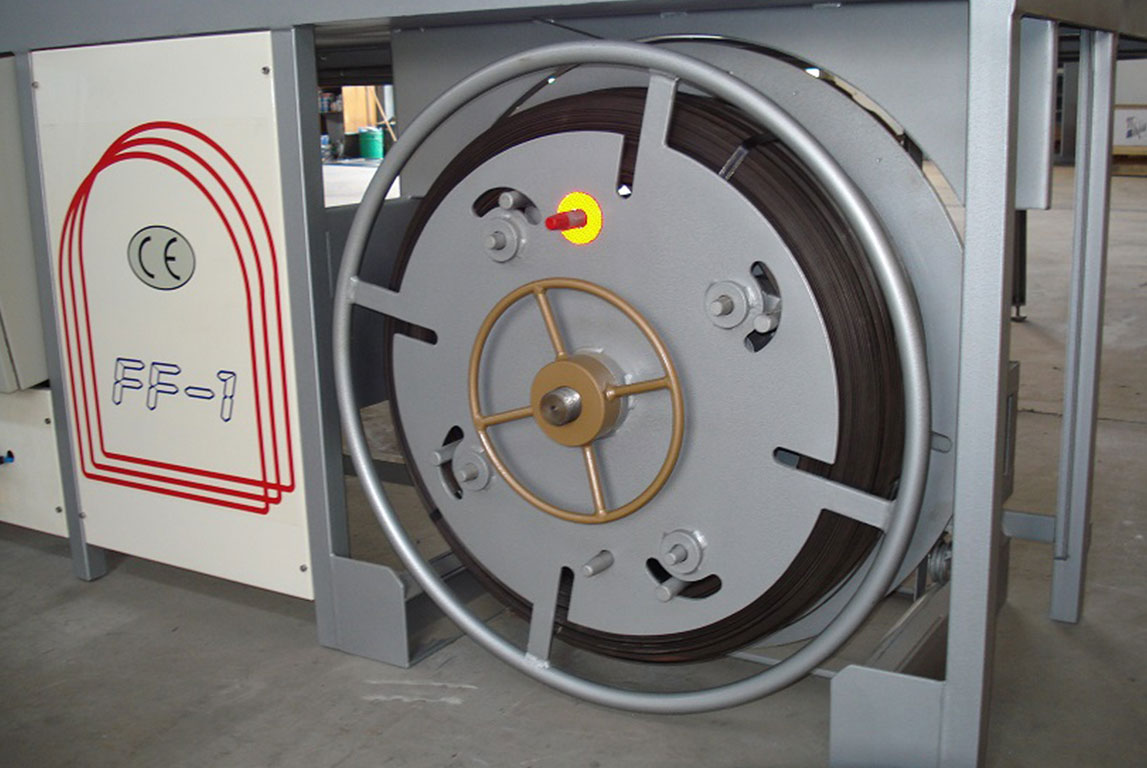

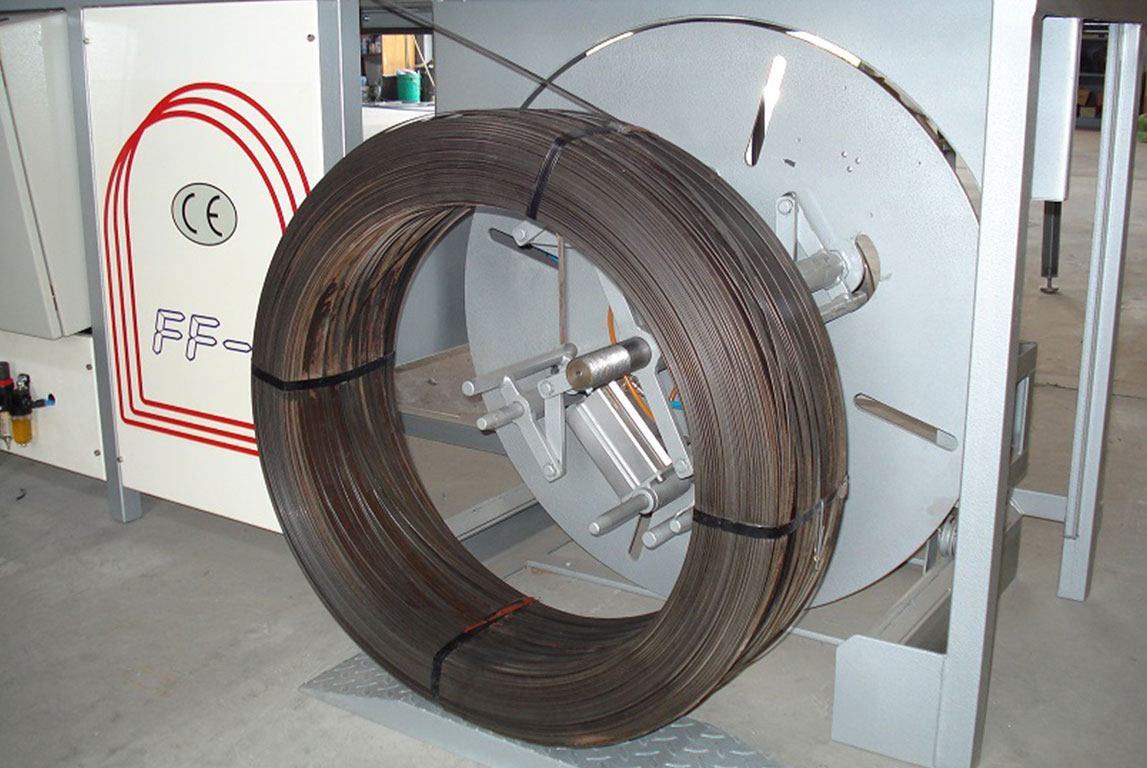

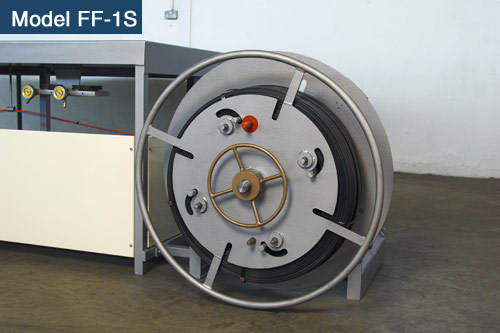

The machine will cater for Flat Steel Strip Frame with 200 kg (standard) coil pneumatically operated swift, as well as for round wire border frame of up to 5mm diameter with a 1-ton motorised wire swift.
